Home EV Charger Series
The QIAO Home AC Charger Series is built for residential projects, property developers, and channel partners, offering stable, high-compatibility AC charging from 7kW to 22kW. Compatible with 99.9% of EVs and global power standards, it supports rapid deployment in diverse installation environments.Featuring industrial-grade design with 4G/Wi-Fi/Ethernet, the chargers enable remote diagnostics, energy monitoring, and low-maintenance fleet management. Multiple start modes—Plug & Play, RFID, app, password, Bluetooth, fingerprint—fit various security and project needs.With modular construction, fast installation, and full CE/TUV/UL certification, the series supports OEM/ODM and large-scale delivery for reliable residential and light-commercial deployment.
Multi scenario guide

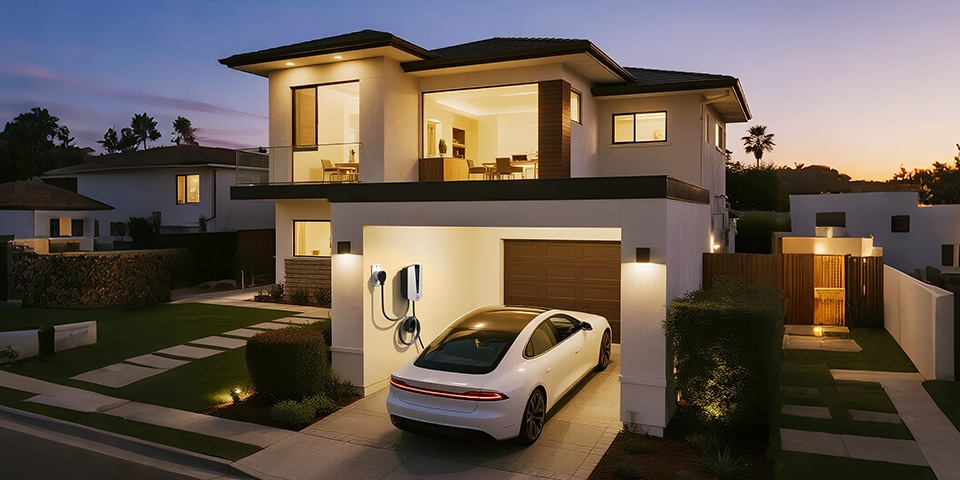

The Indoor Garage in villa
The invisible power hub for your villa garage – wallmounted,space-saving design.charge effortlesslythe moment you arrive home, empowering everyjourney with seamless convenience.

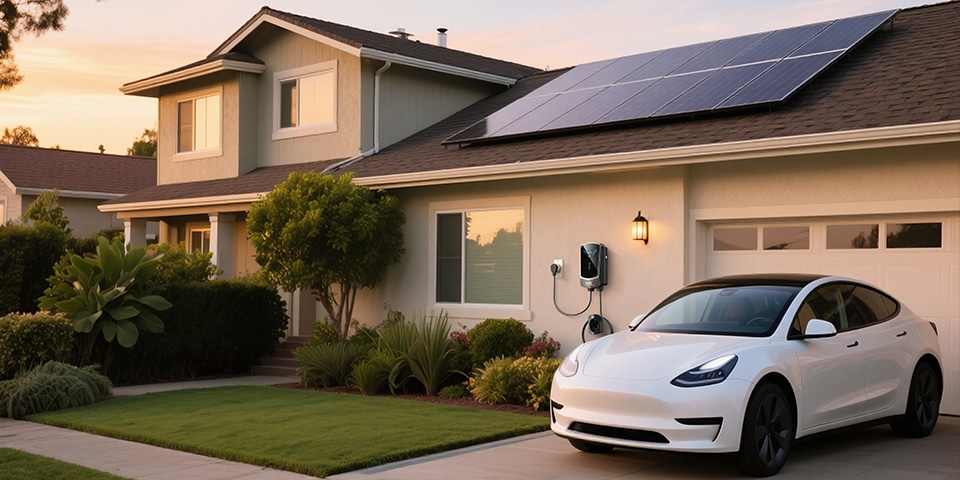

Light storage and charging scenes for self builthouses/villas.
Scenario description: Home charging stations can bepaired with photovoltaics for solar charging, withzero carbon emissions in the photovoltaic storagecharging mode, reducing dependence on mainselectricity, and suitable for outdoor, off grid, orenvironmentallyfriendly application scenarios.

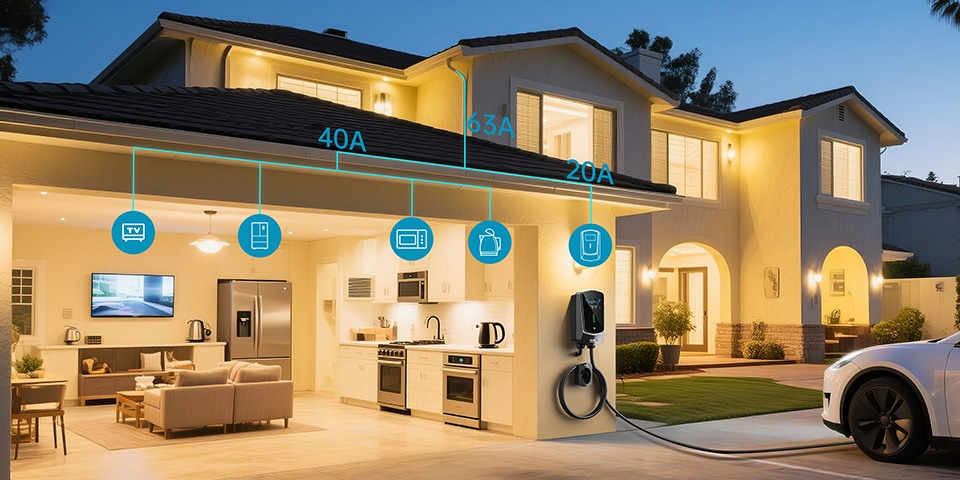

Home ALM function display scenario.
Scenario description: By monitoring the totalhousehold electricity load in real-time, dynamicallyadjusting the power output of charging piles,ensuring household electricity safety, avoidingoverload tripping, and optimizing charging efficiency.This function is particularly suitable for scenarioswhere the household power distribution capacity islimited but high-power appliances (such as airconditioners,induction cookers, etc.) need to beoperated simultaneously.

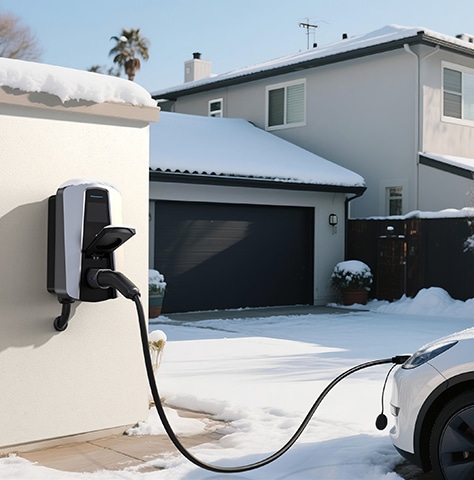

Outdoor Parking space.
Charge with peace of mind, rain or shine.-30’C to 50’C wide-temperature operation +lP66dustproof/waterproof rating ensures reliableperformance even in harsh conditions.

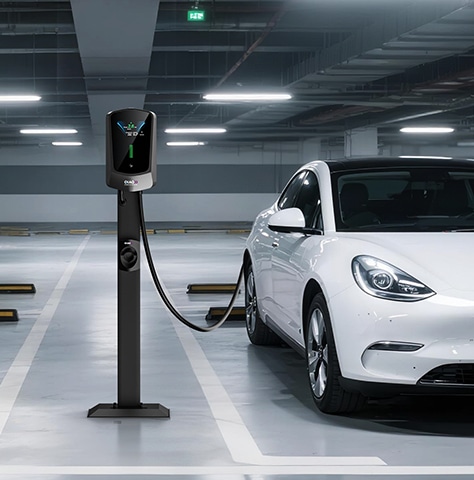

Pole-mounted Solution for Underground Private.
Parking Spaces in High-rise ResidencesIdeal for compact private parking spots-the space.saving pole-mounted installation.
QIAO)) Series Product Comparison
Q5
All EVs
EVs Compatibility
7kw/ 11kw/ 22kw
0utput Power
Single-phase:120-240V Three-phase:380-400V
Voltage
16-32A
Current
Plug & Charge/ Fingerprint/ Password/ RFID Card/ APP/ Bluetooth
Startup Method
YES
LED
NO
LCD
Network
Bluetooth/ Wi-Fi
NO
DLB
TypeA/ TypeA+6/ CCID20
Leakage Protection
14 Protections
Electrical Protection
F1
Weather Resistance
lP66
Waterproof
lK10
Fall Protection
-40°C~80°C
Storage Temperature
-30'C~50'C
Operating Temperature
5%~95%
Operating Humidity
<2000M
Altitude
Wall Mount / Pole Mount
Installation Type
≥10 years
Design Life
15 Months
Warranty Period
23*16*7.5cm
Product size
5M/7.62M/ customized
Cable Length
98%
Charging Efficiency
Q6
All EVs
EVs Compatibility
7kw/ 11kw/ 22kw
0utput Power
Single-phase:120-240V Three-phase:380-400V
Voltage
16-48A
Current
Plug & Charge/ Fingerprint/ Password/ RFID Card/ APP/ Bluetooth
Startup Method
YES
LED
4.3/7inch
LCD
Network
4G/ Ethernet/ Wifi/ Bluetooth
YES
DLB
TypeA/ TypeA+6/ CCID20
Leakage Protection
14 Protections
Electrical Protection
F1
Weather Resistance
lP66
Waterproof
lK10
Fall Protection
-40°C~80°C
Storage Temperature
-30'C~50'C
Operating Temperature
5%~95%
Operating Humidity
<2000M
Altitude
Wall Mount / Pole Mount
Installation Type
≥10 years
Design Life
15 Months
Warranty Period
30*18*12cm
Product size
5M/7.62M/ customized
Cable Length
98%
Charging Efficiency
Q7
All EVs
EVs Compatibility
7kw/ 11kw/ 22kw
0utput Power
Single-phase:120-240V Three-phase:380-400V
Voltage
16-32A
Current
Plug & Charge/ Fingerprint/ Password/ RFID Card/ APP/ Bluetooth
Startup Method
NO
LED
3.5 inch
LCD
Network
4G/ Ethernet/ Bluetooth
NO
DLB
TypeA/ TypeA+6/ CCID20
Leakage Protection
14 Protections
Electrical Protection
F1
Weather Resistance
lP66
Waterproof
lK10
Fall Protection
-40°C~80°C
Storage Temperature
-30'C~50'C
Operating Temperature
5%~95%
Operating Humidity
<2000M
Altitude
Wall Mount / Pole Mount
Installation Type
≥10 years
Design Life
15 Months
Warranty Period
30*18*12cm
Product size
5M/7.62M/ customized
Cable Length
98%
Charging Efficiency
Q8
All EVs
EVs Compatibility
7kw/ 11kw/ 22kw
0utput Power
Single-phase:120-240V Three-phase:380-400V
Voltage
16-48A
Current
Plug & Charge/ RFID Card/
APP/ Bluetooth
Startup Method
YES
LED
4.3 inch
LCD
Network
4G/ Ethernet/ Wifi/ Bluetooth
NO
DLB
TypeA/ TypeA+6/ CCID20
Leakage Protection
14 Protections
Electrical Protection
F1
Weather Resistance
lP66
Waterproof
lK10
Fall Protection
-40°C~80°C
Storage Temperature
-30'C~50'C
Operating Temperature
5%~95%
Operating Humidity
<2000M
Altitude
Wall Mount / Pole Mount
Installation Type
≥10 years
Design Life
15 Months
Warranty Period
30*18*12cm
Product size
5M/7.62M/ customized
Cable Length
98%
Charging Efficiency
