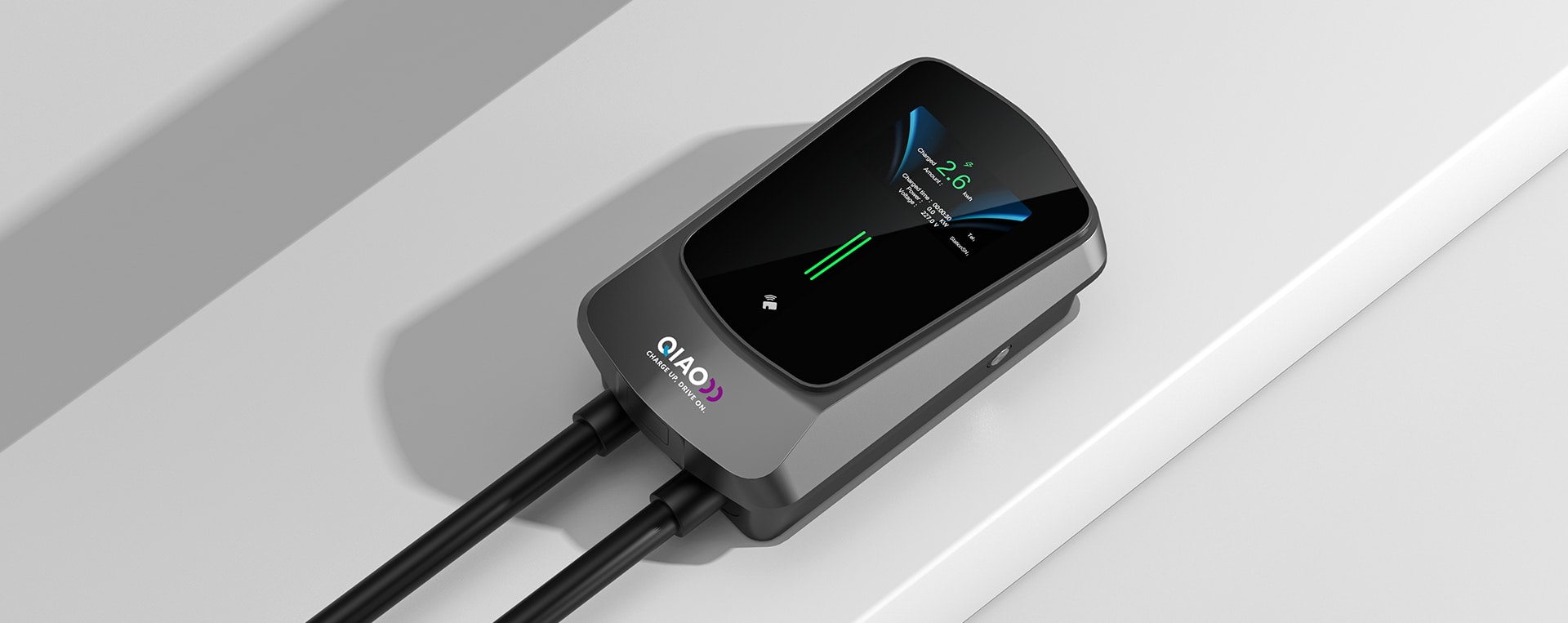

QIAO)) Q6 Series

Drive Up,charge on

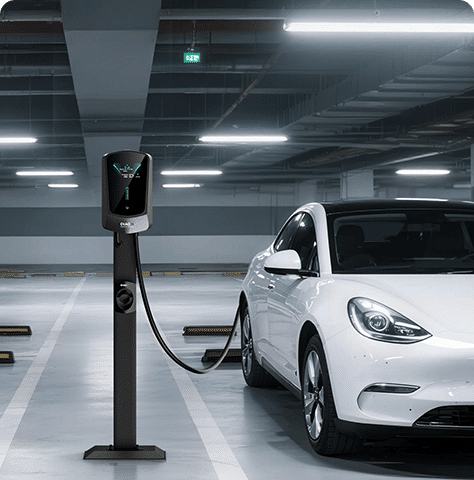

Multi scenario guide

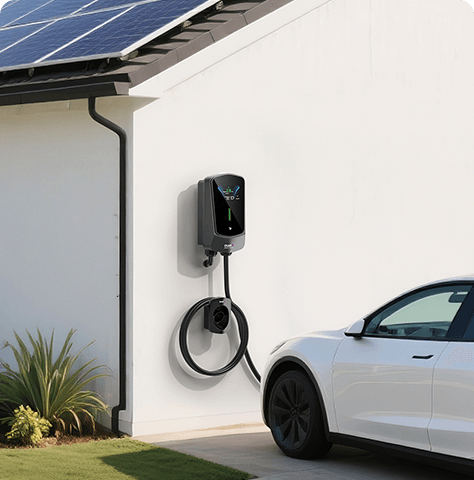

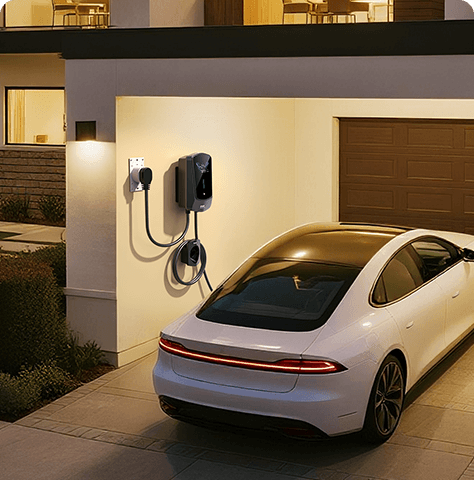

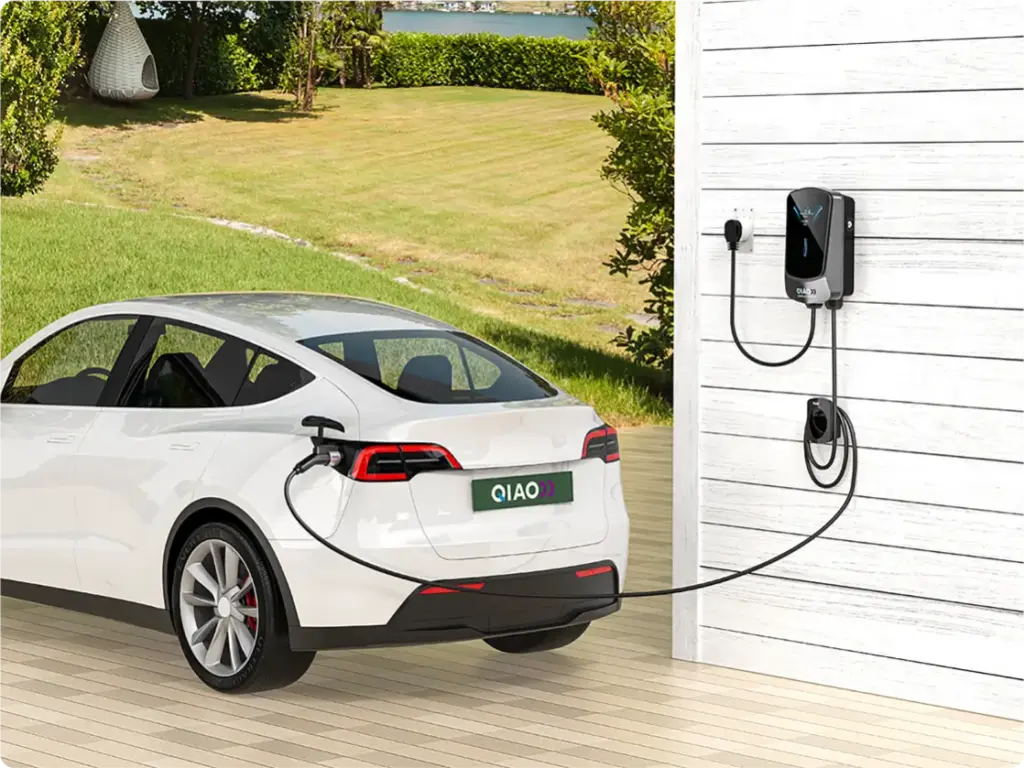

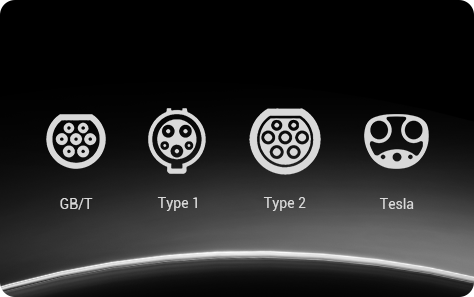

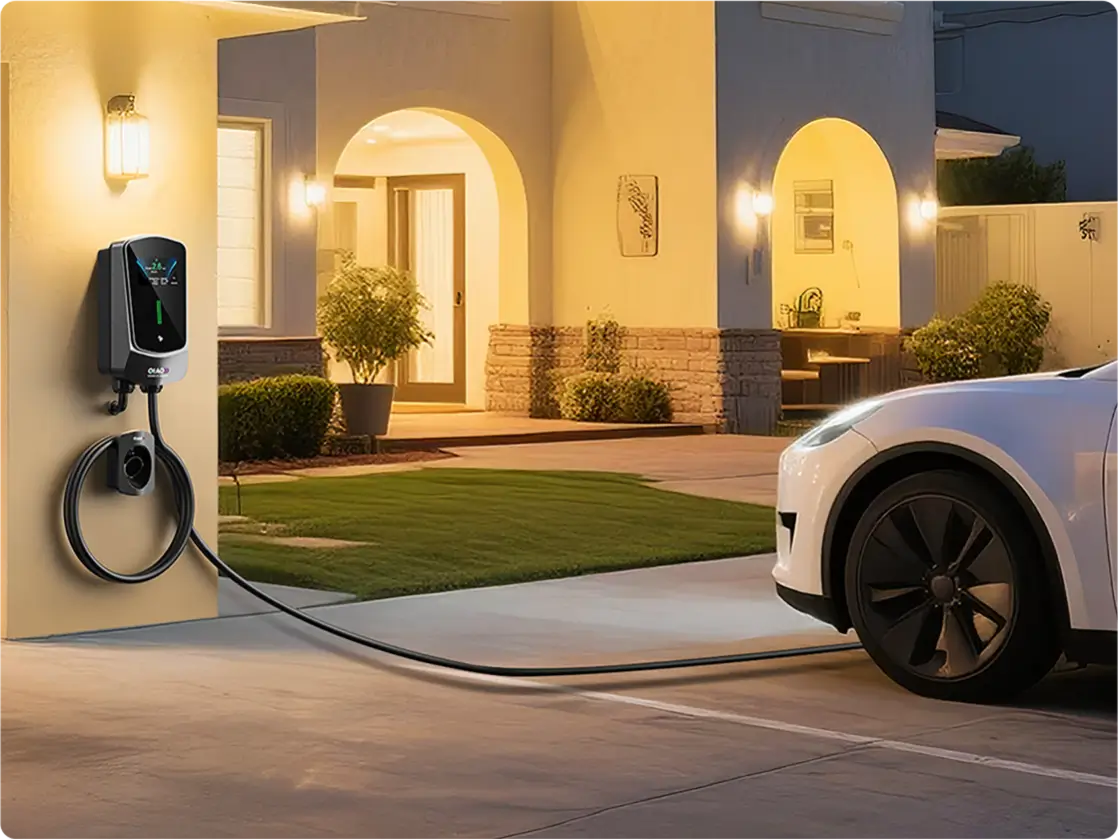

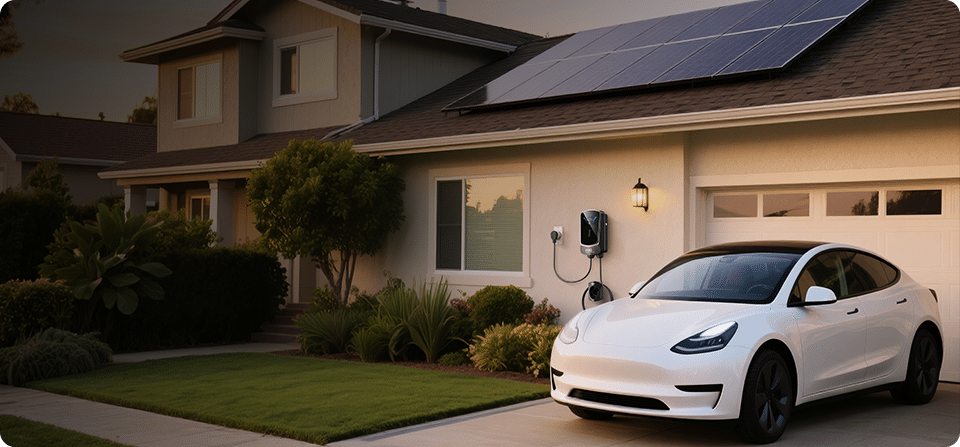

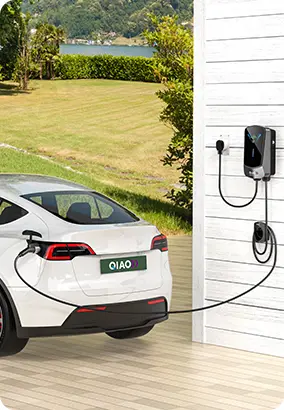

The home charging pile is designed specifically for home scenarios, suitable for garages,courtyards, and private parking spaces. It is compatible with 99.9% of electric vehicles on the market, and all home series support charging with 7kw/11kw/22kw power and can be compatible with global plugs.Support remote access,monitoring, diagnostics,management, control, appointment charging, battery level statistics and other functions of mobile APP, allowing you to keep track of the charging status at any time. The startup mode supports plug and charge,fingerprint/password, Bluetooth, APP remote, and RFID card. It also supports 4G/Wi Fi/Ethernet networking to meet future intelligent needs.The QIAO home charging pile series provide a safe, efficient, and worry free charging experience, allowing you to start every day from full charge.

safety protection

Earth Leakage Protection by RCD

Automotive-grade protection

Overcurrent / Short-circuit protection

Over/low- temperature fault protection

Overcurrent protection

Over – charge Protection

Emergency Stop Protection

Input Shutdown Protection

Lightning Protection

Dual Temperature – rise Protection

Flame retardant protection

Grounding Protection

Phase Sequence Reverse Protection

Relay Overheat Protection

Cooling Method

Natural Cooling

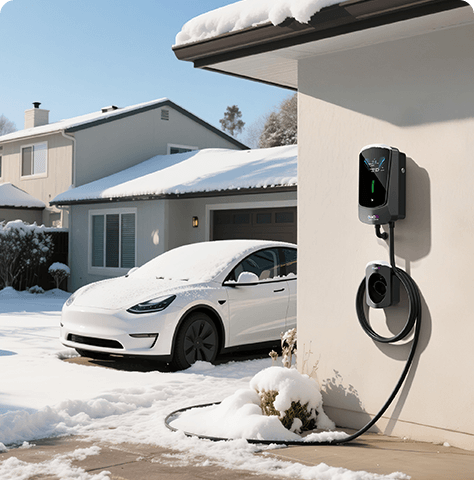

Operating Temperature

-30℃~50

Intelligent Temperature Regulation

Automatic Cooling at 90℃

Automatic Cooling at 90

-40℃~70

Humidity

5%~95%

Altitude

≤2000M

Conversion Efficiency ≥ 98%

Industry-standard reliability testing

  • Mechanical Life Testing
  • Environmental Testing
  • Mechanical Structure Testing
  • Electrical Testing

PC9010 Durable Material

Conversion Efficiency ≥ 98%

Industry-standard reliability testing

Insulation Resistance ≥ 10MΩ, Stable Operation in Harsh Enviro

PC9010 Durable Material

QIAO)) Series Product Comparison

Q5

Q5

All EVs

EVs Compatibility

7kw/ 11kw/ 22kw

0utput Power

Single-phase:120-240V
Three-phase:380-400V

Voltage

16-32A

Current

Plug & Charge/ Fingerprint/ Password/
RFID Card/ APP/ Bluetooth

Startup Method

YES

LED

NO

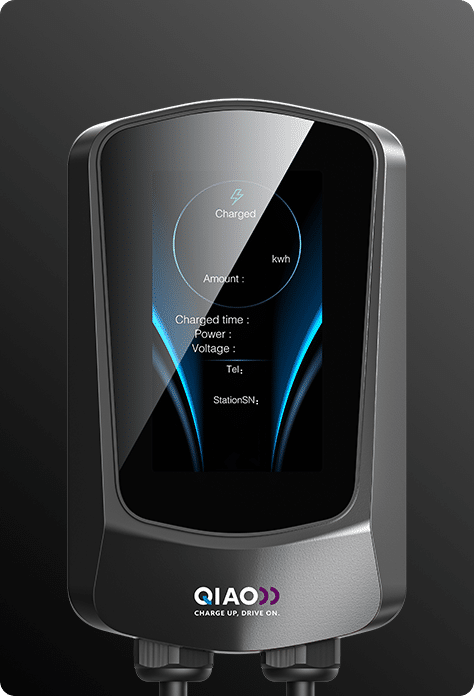

LCD

Network

Bluetooth/ Wi-Fi

NO

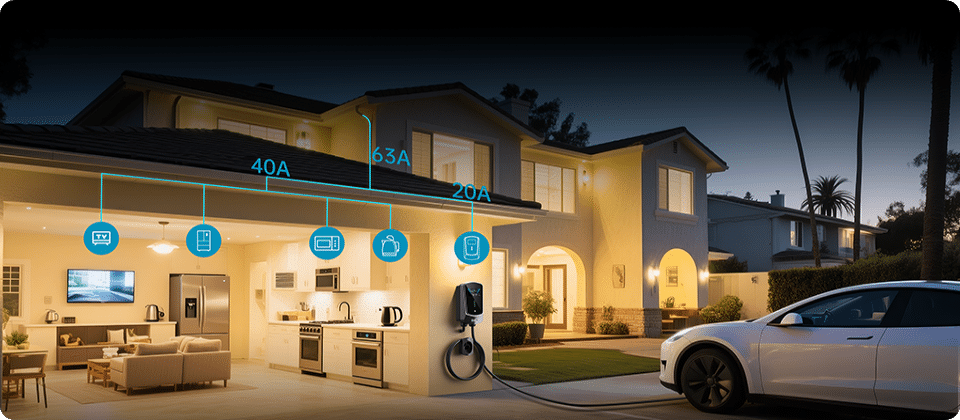

DLB

TypeA/ TypeA+6/ CCID20

Leakage Protection

14 Protections

Electrical Protection

F1

Weather Resistance

lP66

Waterproof

lK10

Fall Protection

-40°C~80°C

Storage Temperature

-30'C~50'C

Operating Temperature

5%~95%

Operating Humidity

<2000M

Altitude

Wall Mount / Pole Mount

Installation Type

≥10 years

Design Life

15 Months

Warranty Period

23*16*7.5cm

Product size

5M/7.62M/ customized

Cable Length

98%

Charging Efficiency

Q6

Q6

All EVs

EVs Compatibility

7kw/ 11kw/ 22kw

0utput Power

Single-phase:120-240V
Three-phase:380-400V

Voltage

16-48A

Current

Plug & Charge/ Fingerprint/ Password/
RFID Card/ APP/ Bluetooth

Startup Method

YES

LED

4.3/7inch

LCD

Network

4G/ Ethernet/ Wifi/ Bluetooth

YES

DLB

TypeA/ TypeA+6/ CCID20

Leakage Protection

14 Protections

Electrical Protection

F1

Weather Resistance

lP66

Waterproof

lK10

Fall Protection

-40°C~80°C

Storage Temperature

-30'C~50'C

Operating Temperature

5%~95%

Operating Humidity

<2000M

Altitude

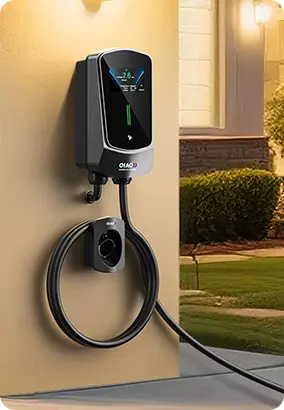

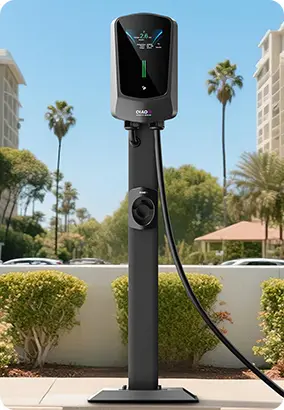

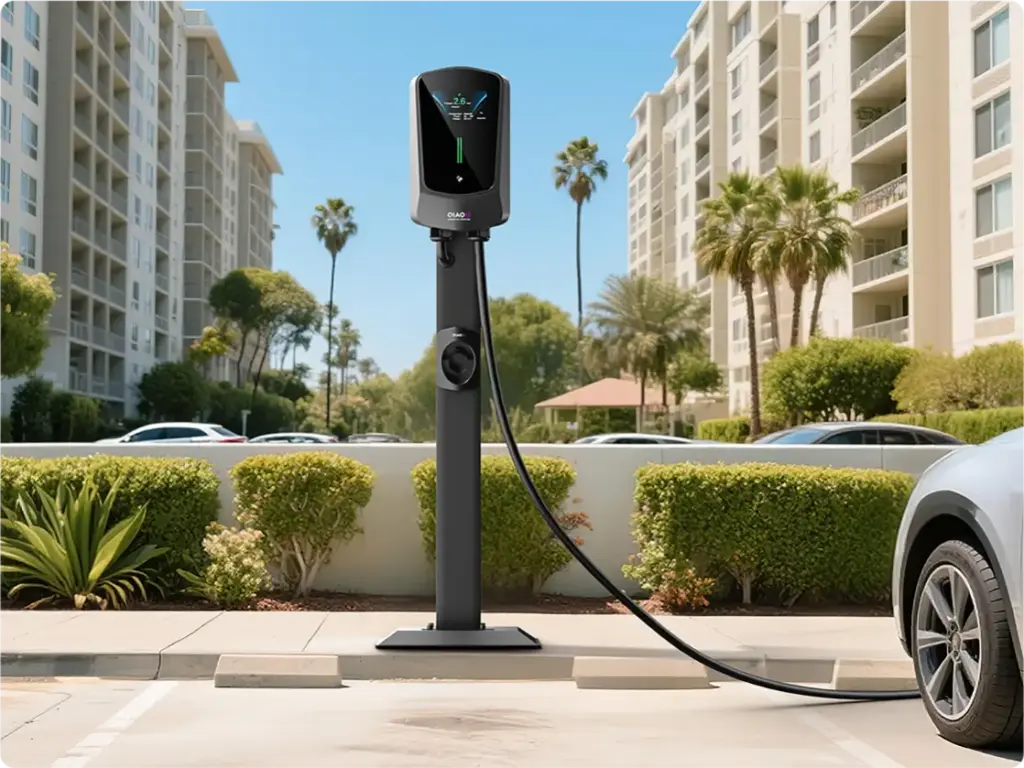

Wall Mount / Pole Mount

Installation Type

≥10 years

Design Life

15 Months

Warranty Period

30*18*12cm

Product size

5M/7.62M/ customized

Cable Length

98%

Charging Efficiency

Q7

Q7

All EVs

EVs Compatibility

7kw/ 11kw/ 22kw

0utput Power

Single-phase:120-240V
Three-phase:380-400V

Voltage

16-32A

Current

Plug & Charge/ Fingerprint/ Password/
RFID Card/ APP/ Bluetooth

Startup Method

NO

LED

3.5 inch

LCD

Network

4G/ Ethernet/ Bluetooth

NO

DLB

TypeA/ TypeA+6/ CCID20

Leakage Protection

14 Protections

Electrical Protection

F1

Weather Resistance

lP66

Waterproof

lK10

Fall Protection

-40°C~80°C

Storage Temperature

-30'C~50'C

Operating Temperature

5%~95%

Operating Humidity

<2000M

Altitude

Wall Mount / Pole Mount

Installation Type

≥10 years

Design Life

15 Months

Warranty Period

30*18*12cm

Product size

5M/7.62M/ customized

Cable Length

98%

Charging Efficiency

Q8

Q8

All EVs

EVs Compatibility

7kw/ 11kw/ 22kw

0utput Power

Single-phase:120-240V
Three-phase:380-400V

Voltage

16-48A

Current

Plug &
Charge/ RFID Card/APP/ Bluetooth

Startup Method

YES

LED

4.3 inch

LCD

Network

4G/ Ethernet/ Wifi/ Bluetooth

NO

DLB

TypeA/ TypeA+6/ CCID20

Leakage Protection

14 Protections

Electrical Protection

F1

Weather Resistance

lP66

Waterproof

lK10

Fall Protection

-40°C~80°C

Storage Temperature

-30'C~50'C

Operating Temperature

5%~95%

Operating Humidity

<2000M

Altitude

Wall Mount / Pole Mount

Installation Type

≥10 years

Design Life

15 Months

Warranty Period

30*18*12cm

Product size

5M/7.62M/ customized

Cable Length

98%

Charging Efficiency
