Multi-Scenario Applications

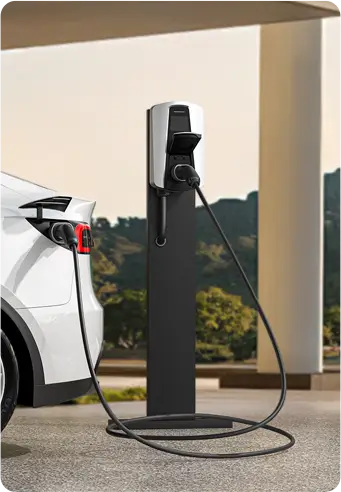

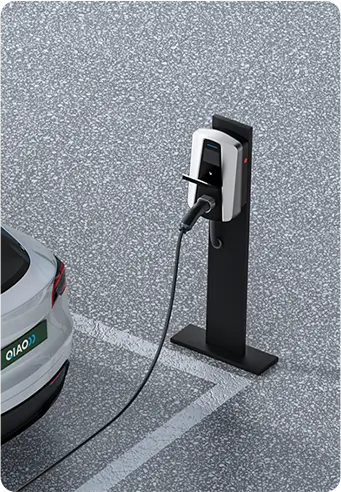

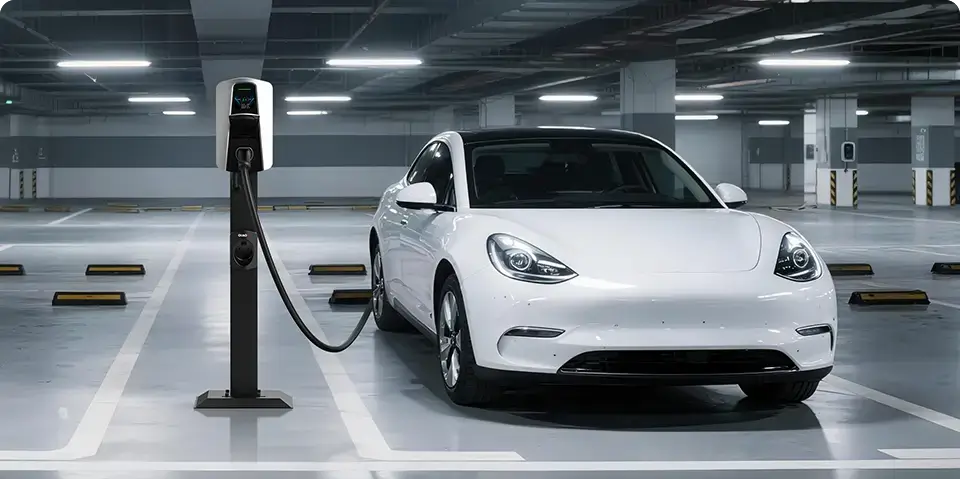

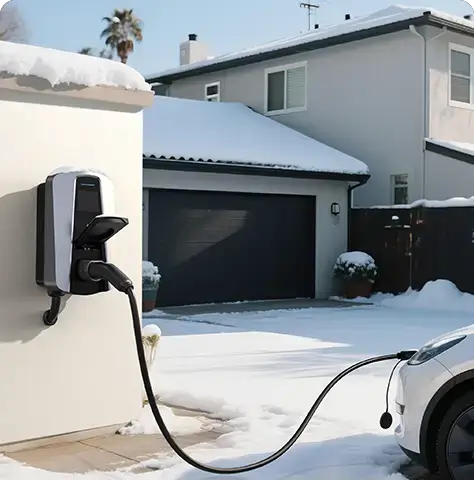

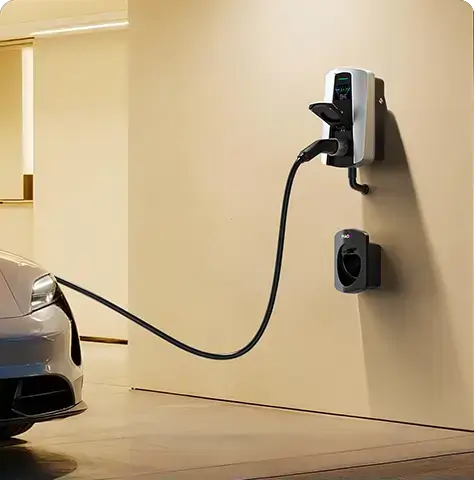

The QIAO Home Charger Series is designed for both indoor and outdoor use, adapting seamlessly to a wide range of residential environments.Whether installed in garages, underground parking, private villas, residential communities, or commercial environments, it delivers reliable and consistent charging performance wherever it’s needed.
Designed for both indoor and outdoor use, the series adapts to garages, underground parking, private villas, and residential communities, delivering consistent and reliable home charging wherever it’s needed.

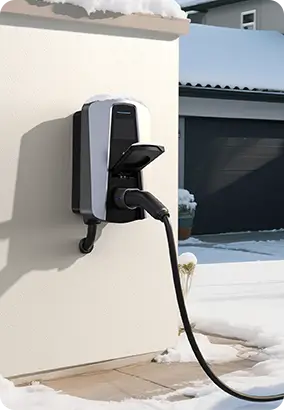

Protection Features
Earth Leakage Protection by RCD
Automotive-grade protection
Overcurrent / Short-circuit protection
Over/low- temperature fault protection
Overcurrent protection
Over – charge Protection
Emergency Stop Protection
Input Shutdown Protection
Lightning Protection
Dual Temperature – rise Protection
Flame retardant protection
Grounding Protection
Phase Sequence Reverse Protection
Relay Overheat Protection
Cooling Method
Natural Cooling
Operating Temperature
-30℃~50
Intelligent Temperature Regulation
Automatic Cooling at 90℃
Automatic Cooling at 90
-40℃~70
Humidity
5%~95%
Altitude
≤2000M
Conversion Efficiency ≥ 98%
Industry-standard reliability testing
- Mechanical Life Testing
- Environmental Testing
- Mechanical Structure Testing
- Electrical Testing
PC9010 Durable Material
Conversion Efficiency ≥ 98%
Industry-standard reliability testing
Insulation Resistance ≥ 10MΩ, Stable Operation in Harsh Enviro
PC9010 Durable Material
*Data sourced from QIAO)) Lab, measured while charging a specific brand product with the Q7 charger at an ambient temperature of 25°C. Results are for reference only; The actual performance may vary based on real-world usage.
Abundant accessories
Universal adapter – one charger for multiple models,Dual-head cable – portable travel made worry-free,Power extractor – your camping picnic companion,V2V function – enables convenient car-to-car charging.
QIAO)) Series Product Comparison
Q5
All EVs
EVs Compatibility
7kw/ 11kw/ 22kw
0utput Power
Single-phase:120-240V Three-phase:380-400V
Voltage
16-32A
Current
Plug & Charge/ Fingerprint/ Password/ RFID Card/ APP/ Bluetooth
Startup Method
YES
LED
NO
LCD
Network
Bluetooth/ Wi-Fi
NO
DLB
TypeA/ TypeA+6/ CCID20
Leakage Protection
14 Protections
Electrical Protection
F1

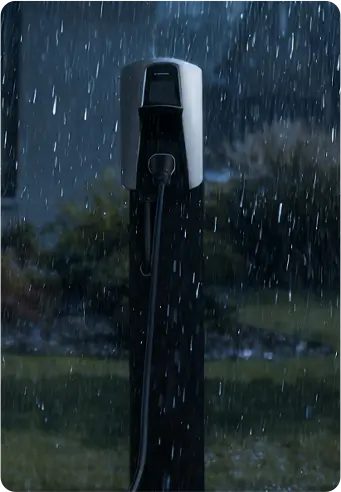

Weather Resistance
lP66
Waterproof
lK10
Fall Protection
-40°C~80°C
Storage Temperature
-30'C~50'C
Operating Temperature
5%~95%
Operating Humidity
<2000M
Altitude
Wall Mount / Pole Mount
Installation Type
≥10 years
Design Life
15 Months
Warranty Period
23*16*7.5cm
Product size
5M/7.62M/ customized
Cable Length
98%
Charging Efficiency
Q6
All EVs
EVs Compatibility
7kw/ 11kw/ 22kw
0utput Power
Single-phase:120-240V Three-phase:380-400V
Voltage
16-48A
Current
Plug & Charge/ Fingerprint/ Password/ RFID Card/ APP/ Bluetooth
Startup Method
YES
LED
4.3/7inch
LCD
Network
4G/ Ethernet/ Wifi/ Bluetooth
YES
DLB
TypeA/ TypeA+6/ CCID20
Leakage Protection
14 Protections
Electrical Protection
F1
Weather Resistance
lP66
Waterproof
lK10
Fall Protection
-40°C~80°C
Storage Temperature
-30'C~50'C
Operating Temperature
5%~95%
Operating Humidity
<2000M
Altitude
Wall Mount / Pole Mount
Installation Type
≥10 years
Design Life
15 Months
Warranty Period
30*18*12cm
Product size
5M/7.62M/ customized
Cable Length
98%
Charging Efficiency
Q7
All EVs
EVs Compatibility
7kw/ 11kw/ 22kw
0utput Power
Single-phase:120-240V Three-phase:380-400V
Voltage
16-32A
Current
Plug & Charge/ Fingerprint/ Password/ RFID Card/ APP/ Bluetooth
Startup Method
NO
LED
3.5 inch
LCD
Network
4G/ Ethernet/ Bluetooth
NO
DLB
TypeA/ TypeA+6/ CCID20
Leakage Protection
14 Protections
Electrical Protection
F1
Weather Resistance
lP66
Waterproof
lK10
Fall Protection
-40°C~80°C
Storage Temperature
-30'C~50'C
Operating Temperature
5%~95%
Operating Humidity
<2000M
Altitude
Wall Mount / Pole Mount
Installation Type
≥10 years
Design Life
15 Months
Warranty Period
30*18*12cm
Product size
5M/7.62M/ customized
Cable Length
98%
Charging Efficiency
Q8
All EVs
EVs Compatibility
7kw/ 11kw/ 22kw
0utput Power
Single-phase:120-240V Three-phase:380-400V
Voltage
16-48A
Current
Plug &Charge/ RFID Card/
APP/ Bluetooth
Startup Method
YES
LED
4.3 inch
LCD
Network
4G/ Ethernet/ Wifi/ Bluetooth
NO
DLB
TypeA/ TypeA+6/ CCID20
Leakage Protection
14 Protections
Electrical Protection
F1
Weather Resistance
lP66
Waterproof
lK10
Fall Protection
-40°C~80°C
Storage Temperature
-30'C~50'C
Operating Temperature
5%~95%
Operating Humidity
<2000M
Altitude
Wall Mount / Pole Mount
Installation Type
≥10 years
Design Life
15 Months
Warranty Period
30*18*12cm
Product size
5M/7.62M/ customized
Cable Length
98%
Charging Efficiency
