Common Error Codes in Commercial AC EV Chargers: A Complete Troubleshooting Guide

In commercial EV charging operations, one of the most frequent challenges is:

handling charger error codes

Error codes are critical because they:

  • indicate system issues
  • help diagnose faults
  • guide maintenance actions

Understanding them can significantly reduce:

  • downtime
  • maintenance cost
  • service interruptions

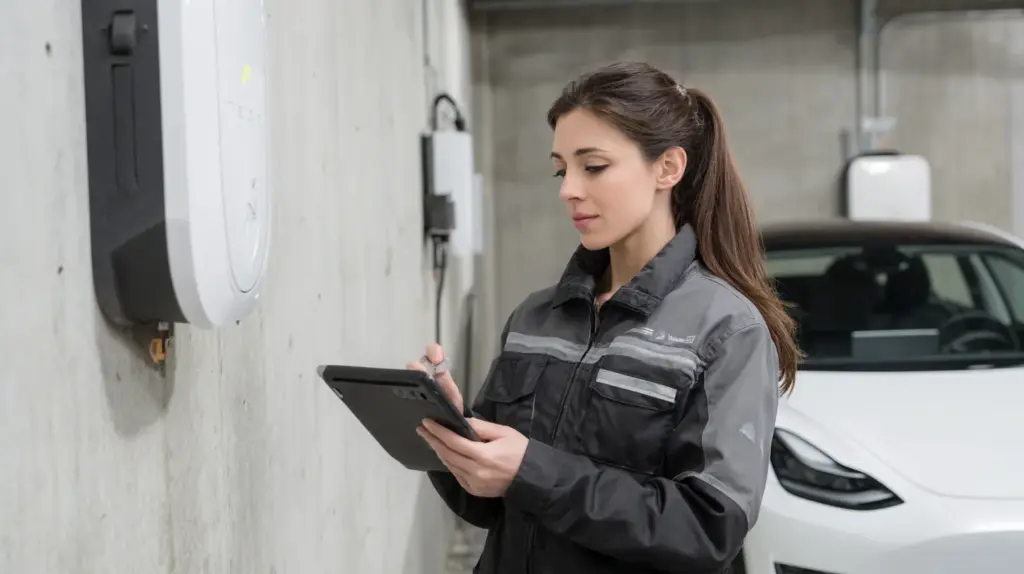

EV charger error codes

What Are EV Charger Error Codes?

Error codes are system-generated alerts that indicate:

  • hardware faults
  • communication failures
  • safety issues

They act as a diagnostic interface between the charger and operator

Why Error Codes Matter in Commercial Charging

In commercial environments:

  • multiple chargers operate simultaneously
  • uptime directly affects revenue

Fast diagnosis is essential for:

  • minimizing downtime
  • maintaining user satisfaction

Categories of Common Error Codes

1. Power & Electrical Errors

Examples

  • Overcurrent
  • Overvoltage
  • Undervoltage

Causes

  • unstable grid
  • incorrect installation
  • overload

Solution

  • check power supply
  • verify circuit capacity
  • inspect wiring

2. Ground Fault / Leakage Errors

Examples

  • leakage current detected
  • RCD triggered

Causes

  • insulation failure
  • moisture intrusion
  • cable damage

Solution

  • inspect cables
  • check grounding system
  • verify RCD functionality

3. Communication Errors

Example

  • backend connection lost
  • OCPP timeout
  • network failure

Causes

  • unstable internet
  • server issues
  • SIM/network problems

Solution

  • check connectivity (Ethernet / 4G / WiFi)
  • restart communication module
  • verify backend status

4. Vehicle Communication Errors

Examples

  • handshake failure
  • charging session not started

Causes

  • incompatible vehicle
  • connector issues
  • protocol mismatch

Solution

  • reconnect cable
  • try another vehicle
  • update firmware

5. Temperature Errors

Examples

  • over-temperature warning
  • thermal shutdown

Causes

  • high ambient temperature
  • poor ventilation
  • internal component failure

Solution

  • improve airflow
  • reduce load
  • inspect cooling system

6. Hardware Faults

Examples

  • relay failure
  • sensor malfunction

Causes

  • component wear
  • manufacturing defects

Solution

  • replace faulty components
  • contact manufacturer support

7. Authentication & Payment Errors

Examples

  • RFID card not recognized
  • payment failed

Causes

  • user authorization issue
  • backend error

Solution

  • verify user credentials
  • check billing system

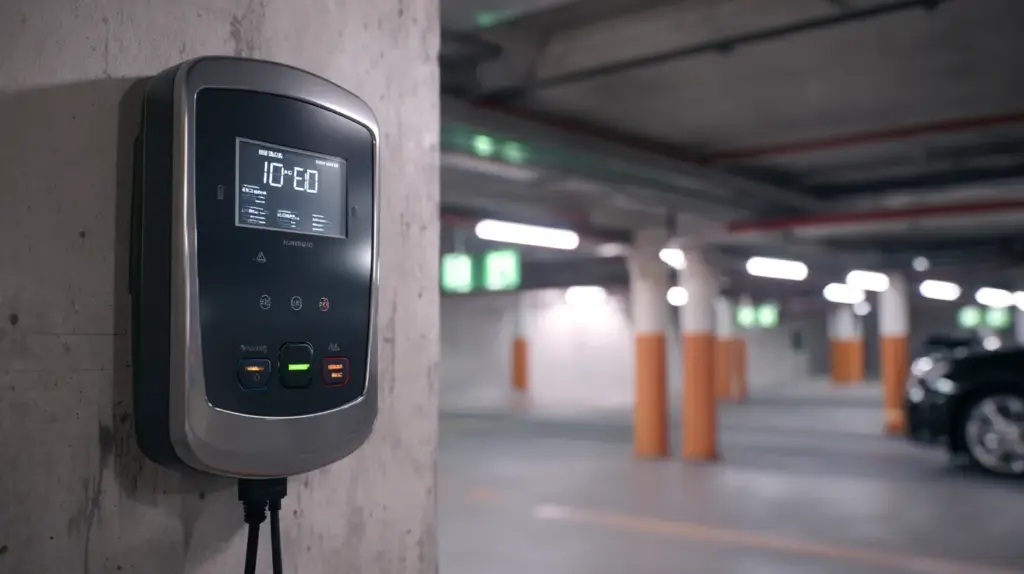

EV charger error codes

Typical Error Code Table (Example)

CodeDescriptionAction
E01OvercurrentCheck load
E02Ground faultInspect wiring
E03Communication lossCheck network
E04Over-temperatureImprove cooling
E05Authentication failedVerify user

Note: Codes vary by manufacturer.

How to Diagnose Errors Efficiently

Step 1: Identify Error Code

  • read display or app
  • log error

Step 2: Categorize the Issue

  • electrical
  • communication
  • hardware

Step 3: Check Basic Conditions

  • power supply
  • network status
  • cable connection

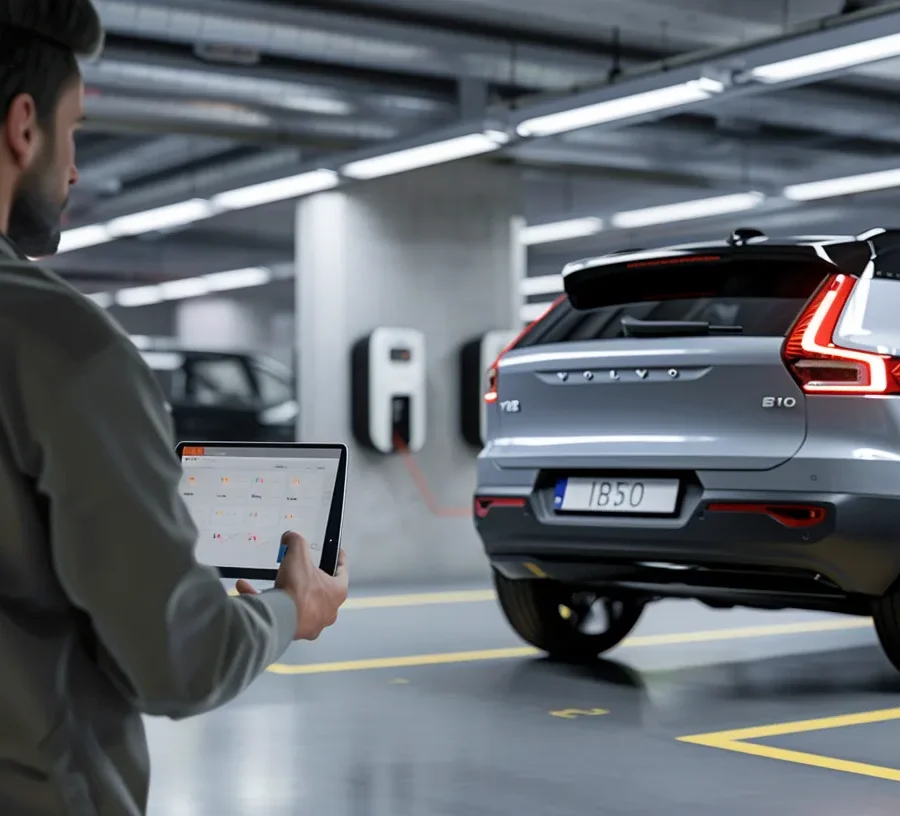

Step 4: Use Remote Diagnostics

Remote diagnostics allows:

  • real-time monitoring
  • remote troubleshooting

Step 5: Escalate if Needed

  • contact technical support
  • replace components

Role of Smart Charging Platforms

Smart charging overview:
https://en.wikipedia.org/wiki/Smart_charging

Platforms provide:

  • centralized error monitoring
  • alerts and notifications
  • historical data analysis

Essential for large deployments

Preventing Common Errors

1. Proper Installation

  • follow standards
  • ensure correct wiring

2. Regular Maintenance

  • inspect cables
  • check connections

3. Stable Connectivity

  • reliable network setup

4. Firmware Updates

  • fix bugs
  • improve compatibility

Business Impact of Error Management

Efficient error handling helps:

  • reduce downtime
  • lower maintenance cost
  • improve user experience
  • increase revenue

Future Trend: Predictive Maintenance

With AI and data analytics:

  • errors can be predicted
  • failures prevented

Moving from reactive → proactive maintenance

About QIAO

QIAO provides AC EV charging solutions with advanced diagnostics and error management systems.

Our solutions support:

  • real-time error monitoring
  • remote diagnostics
  • smart alerts
  • predictive maintenance

QIAO helps operators achieve high uptime and efficient operations.

FAQ

Are error codes standardized?
No, they vary by manufacturer.

Can errors be resolved remotely?
Many can, using smart platforms.

What is the most common error?
Communication and power-related issues.

Should all errors be handled immediately?
Critical errors should be prioritized.
