7KW -Blue CEE 32A -RFID Card
QIAO Q5 Type 2 Home EV Charger – 7/11/22kW, CEE Plug or Hardwired, with RFID Access and LED Display

QIAO Q5 Type 2 Home EV Charger – 7/11/22kW, CEE Plug or Hardwired, with RFID Access and LED Display

$181.23 – $268.89Price range: $181.23 through $268.89
people are viewing this right now
Product introduction

Start charging with a tap of your RFID card—no app setup or internet connection needed. Two pre-paired cards are included, and LED indicators show the charger’s operating status.

  • Charging control: RFID card start and stop
  • RFID cards: Two pre-paired cards included
  • Status display: LED indicators
  • Power options: 7 / 11 / 22 kW
  • Power connection: CEE plug or hardwired
  • Cable: Attached 5 m Type 2 charging cable
  • Electrical protection: Built-in Type A residual current protection with 6 mA DC detection
  • Durability: IP66 protection for indoor and outdoor use, plus IK10 impact resistance
  • Operating temperature: −30°C to +62°C
  • Enclosure: Flame-retardant polycarbonate housing that resists weathering and acid rain

Need a different cable length? Contact us before ordering.

7KW + CEE 32A Blue Plug
7KW + Hardwired
11KW + CEE 16A Red Plug
11KW + Hardwired
22KW + CEE 32A Red Plug
22KW + Hardwired
Clear
Image Checkout
Guaranteed Checkout
  • ✓ Factory Direct Shipping ✓ Dispatch within 2–3 business days ✓ Tracking number provided ✓ Europe delivery: 3–15 business days* *Estimated transit time after dispatch. Delivery time varies by shipping method.
  • See Shipping & Return for delivery and return details.
SKU: D2300-3-2-4-3 Categories: type 2 chargers, Type 2 Wallbox Tag: Q5
QIAO Q5 Type 2 Home EV Charger – 7/11/22kW, CEE Plug or Hardwired, with RFID Access and LED Display
$181.23 – $268.89Price range: $181.23 through $268.89
select option

Deep Dive

Packing List

QIAO)) Series Product Comparison

Q5

Q5

Configure
Learn More >

All EVs

EVs Compatibility

7kw/ 11kw/ 22kw

0utput Power

Single-phase:120-240V
Three-phase:380-400V

Voltage

16-32A

Current

Plug & Charge/ Fingerprint/ Password/
RFID Card/ APP/ Bluetooth

Startup Method

YES

LED

NO

LCD

Network

Bluetooth/ Wi-Fi

NO

DLB

TypeA/ TypeA+6/ CCID20

Leakage Protection

14 Protections

Electrical Protection

F1

Weather Resistance

lP66

Waterproof

lK10

Fall Protection

-40°C~80°C

Storage Temperature

-30'C~50'C

Operating Temperature

5%~95%

Operating Humidity

<2000M

Altitude

Wall Mount / Pole Mount

Installation Type

≥10 years

Design Life

24-months

24 Months

Warranty Period

23*16*7.5cm

Product size

5M/7.62M/ customized

Cable Length

98%

Charging Efficiency

Q6

Q6

Configure
Learn More >

All EVs

EVs Compatibility

7kw/ 11kw/ 22kw

0utput Power

Single-phase:120-240V
Three-phase:380-400V

Voltage

16-48A

Current

Plug & Charge/ Fingerprint/ Password/
RFID Card/ APP/ Bluetooth

Startup Method

YES

LED

4.3/7inch

LCD

Network

4G/ Ethernet/ Wifi/ Bluetooth

YES

DLB

TypeA/ TypeA+6/ CCID20

Leakage Protection

14 Protections

Electrical Protection

F1

Weather Resistance

lP66

Waterproof

lK10

Fall Protection

-40°C~80°C

Storage Temperature

-30'C~50'C

Operating Temperature

5%~95%

Operating Humidity

<2000M

Altitude

Wall Mount / Pole Mount

Installation Type

≥10 years

Design Life

24-months

24 Months

Warranty Period

30*18*12cm

Product size

5M/7.62M/ customized

Cable Length

98%

Charging Efficiency

Q7

Q7

Configure
Learn More >

All EVs

EVs Compatibility

7kw/ 11kw/ 22kw

0utput Power

Single-phase:120-240V
Three-phase:380-400V

Voltage

16-32A

Current

Plug & Charge/ Fingerprint/ Password/
RFID Card/ APP/ Bluetooth

Startup Method

NO

LED

3.5 inch

LCD

Network

4G/ Ethernet/ Bluetooth

NO

DLB

TypeA/ TypeA+6/ CCID20

Leakage Protection

14 Protections

Electrical Protection

F1

Weather Resistance

lP66

Waterproof

lK10

Fall Protection

-40°C~80°C

Storage Temperature

-30'C~50'C

Operating Temperature

5%~95%

Operating Humidity

<2000M

Altitude

Wall Mount / Pole Mount

Installation Type

≥10 years

Design Life

24-months

24 Months

Warranty Period

30*18*12cm

Product size

5M/7.62M/ customized

Cable Length

98%

Charging Efficiency

Q8

Q8

Configure
Learn More >

All EVs

EVs Compatibility

7kw/ 11kw/ 22kw

0utput Power

Single-phase:120-240V
Three-phase:380-400V

Voltage

16-48A

Current

Plug &Charge/ RFID Card/APP/ Bluetooth

Startup Method

YES

LED

4.3 inch

LCD

Network

4G/ Ethernet/ Wifi/ Bluetooth

NO

DLB

TypeA/ TypeA+6/ CCID20

Leakage Protection

14 Protections

Electrical Protection

F1

Weather Resistance

lP66

Waterproof

lK10

Fall Protection

-40°C~80°C

Storage Temperature

-30'C~50'C

Operating Temperature

5%~95%

Operating Humidity

<2000M

Altitude

Wall Mount / Pole Mount

Installation Type

≥10 years

Design Life

24-months

24 Months

Warranty Period

30*18*12cm

Product size

5M/7.62M/ customized

Cable Length

98%

Charging Efficiency

Weight N/A
Please choose your power and plug type

7KW + CEE 32A Blue Plug, 7KW + Hardwired, 11KW + CEE 16A Red Plug, 11KW + Hardwired, 22KW + CEE 32A Red Plug, 22KW + Hardwired
Previous

QIAO Q7 Type 2 Home EV Charger – 7kW/11kW/22kW, CEE Plug or Hardwired type, Plug & Charge with 3.5-Inch Display
Next

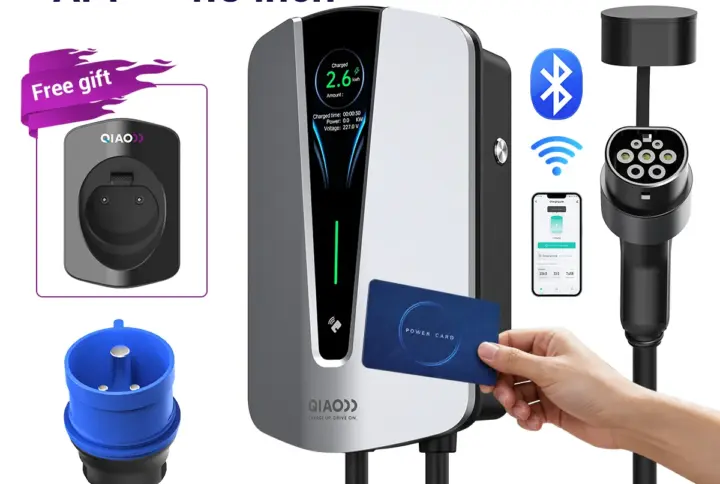

7KW -Blue CEE 32A -E804-RFID Card + WIFI + Bluetooth + APP + 4.3 inch_
