EV charging capacity planning starts with the energy vehicles need, the time available to charge and the site’s electrical limits. These factors help you decide how many charging ports to install and how much power to allocate.
This guide focuses on AC charging for workplaces, shared residential parking and light-duty fleets. It explains how to estimate demand, assess available capacity and decide when load management, electrical upgrades or both may be needed. It also covers planning for uncertain growth and checking whether vehicles can receive the energy they need before leaving.
What Is EV Charging Capacity Planning?
EV charging capacity planning determines how much charging a site needs to provide and how its electrical infrastructure can support that demand. Three measures describe different parts of the plan:
| Measure | What It Tells You |
| Daily Energy Demand (kWh) | How much electricity vehicles need from the supply each day. |
| Charging Power (kW) | How quickly electricity can be supplied at a given moment. |
| Charging Ports | How many vehicles can connect at the same time. |
A site can have many charging ports while limiting their combined power. Whether this meets users’ needs depends on each vehicle’s energy requirement and departure time.
The plan should identify the initial port count, power limits, operating assumptions and conditions for future expansion.
What Vehicle and Charging Data Do You Need?
Start with the vehicles you expect to serve and the time they can stay connected. These details establish the demand your initial charging setup must meet.
Collect Vehicle and Usage Data
Group vehicles by how they use the site, then collect the following information:
| Information | What to Record |
| Vehicle Numbers | Vehicles needing charging on a typical day and a busy day. |
| Energy Use | Daily distance and energy consumption, or recorded charging energy. |
| Vehicle AC Limits | Maximum AC charging power supported by each vehicle group. |
| Charging Frequency | How often vehicles need to charge at this site. |
Use charging logs, fleet records or resident surveys where available. Mark estimates and missing information for later review. Base energy needs on expected use; a vehicle does not necessarily need a full battery recharge each day.
The U.S. Department of Energy’s charging infrastructure planning guidance recommends assessing vehicle numbers, travel patterns and charging time before selecting equipment.
Map Arrival, Departure and Charging Windows
Record when vehicles arrive, when they plug in and when they must leave. Parking time may exceed actual charging time if drivers connect late or charging is restricted to lower-price hours.

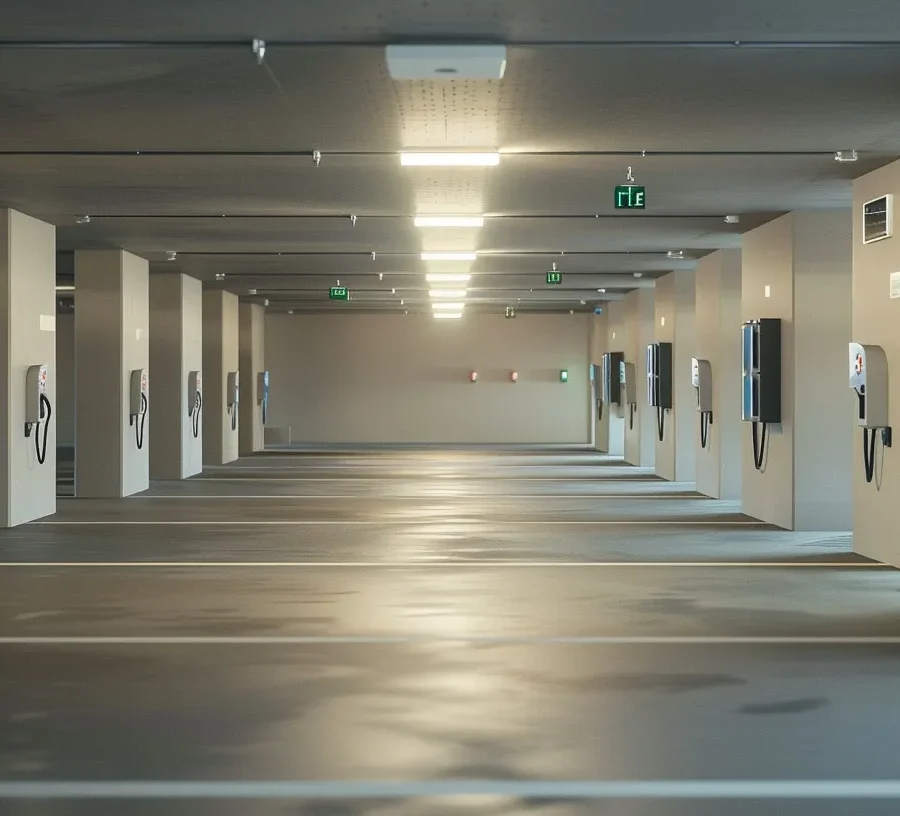

Workplace plans should reflect employee shifts. Shared residential parking needs to account for access and space availability, while fleet plans should follow return times and departure schedules.
Record early departures and overlapping demand alongside typical schedules. These details help reveal which vehicles have the least flexibility.
How Do You Calculate Charging Energy and Power Needs?
Calculate the energy vehicles need from the supply, then check how much power is needed to deliver it within their charging windows.
Estimate Energy Drawn From the Supply
Use recorded charging energy where available. If your estimate describes energy added to the batteries, allow for charging losses when calculating the electricity required from the supply.
Do not add losses again when using metered input energy that already includes them. Keep the same measurement basis throughout your calculations.
Separate Average Demand From Connected Load
For vehicles sharing the same charging window, use this initial estimate:
Average Charging Power Required = Total Supply-Side Energy ÷ Available Charging Hours
Consider an illustrative workplace setup:
| Planning Input | Value |
| Vehicles Needing Charging | 12 |
| Supply-Side Energy per Vehicle, Including Losses | 15 kWh |
| Shared Charging Window | 9 Hours |
| Total Energy Required | 180 kWh |
| Average Charging Power Required | 20 kW |
Twelve 11 kW charging ports have a combined rating of 132 kW. The example’s average requirement is much lower because the energy can be delivered over nine hours.
However, 20 kW is an initial planning figure, not a confirmed electrical design capacity. Actual charging power also depends on the vehicle’s onboard AC charging limit, the installation and any active controls.
Check Vehicles With Shorter Charging Windows
Now suppose two of those vehicles must leave after two hours, each still needing 15 kWh from the supply.
A constant 20 kW charging allocation provides 40 kWh during those two hours. Giving all 12 vehicles an equal share of that energy would provide only about 3.3 kWh per vehicle. The two early departures would fall short despite the site’s apparently sufficient daily average.
The plan must therefore check individual deadlines and power allocation, alongside total energy. Available charging power may also fall when building demand rises, so do not assume the initial average can be maintained throughout the day.
How Much Electrical Capacity Is Available for EV Charging?
Assess the full supply path before setting a power budget for EV charging. Spare capacity at the transformer does not guarantee that the switchboard, feeder or charging circuits can carry the additional load.

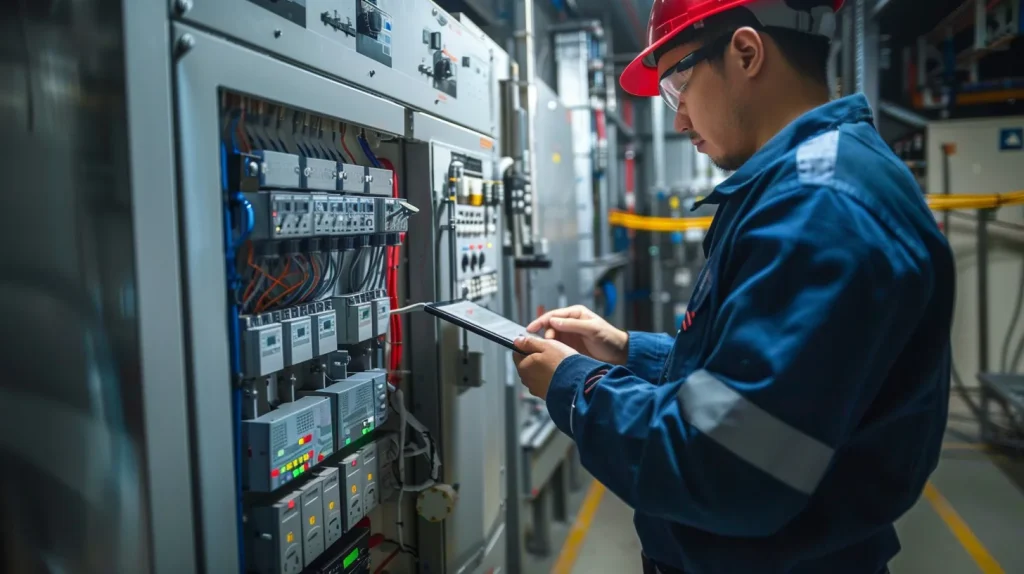

Check Supply and Distribution Limits
Ask a qualified electrical designer or installer to review the following:
- Supply Conditions: Confirm the voltage, available phases, agreed import limit where applicable, and any restrictions set by the electricity supplier or network operator.
- Distribution Equipment: Check the transformer, main switchboard, relevant feeders and proposed charging circuits.
- Phase Loading: Assess individual phase currents as well as total demand.
- Other Planned Loads: Include equipment that may be added, such as heat pumps, machinery or additional building services.
Spare breaker spaces do not prove that electrical capacity is available. Check units and power factor when comparing equipment ratings with measured loads. Do not estimate spare transformer capacity by subtracting a building load in kW directly from a transformer rating in kVA.
Distinguish upgrades within the property from changes to the utility connection. A new distribution board may solve a local constraint without increasing the site’s permitted electricity draw.
Review Existing Load Profiles
Review load data across seasons and the hours when vehicles will charge. Monthly electricity consumption in kWh does not show how much power the building draws at a particular time.
Interval demand data can reveal when charging would overlap with heating, cooling or other major loads. Additional monitoring may be needed when records are incomplete or no longer reflect how the building operates.
The U.S. Department of Energy’s EVI-LOCATE planning guide assesses transformer and service-panel capacity separately and uses existing peak-load data in those checks.
Contact the utility early to confirm connection constraints and any upgrade requirements. Record the limits identified, the data supporting them and any unresolved conditions. Use the assessment to determine how much power charging can use and whether that allowance must change as other site loads rise.
Choose Charging Ports and Power Allocation
Base the number of charging ports on how drivers use the parking spaces, then allocate power within the limits confirmed for the site.
Match Port Count and Charger Type to Parking Patterns
Assigned spaces may need individual charging ports because drivers cannot easily swap spaces. Shared bays can serve more vehicles over a day, but only if drivers can move their cars when charging ends.
AC charging can suit vehicles parked for several hours when it delivers the required energy before departure. Short charging windows or high energy needs may require DC charging, a mixed setup or changes to operating schedules. Check vehicle compatibility before selecting higher-power equipment.
Choose Fixed or Dynamic Power Allocation
The main approaches differ in how they assign the available power:
| Approach | How Power Is Allocated |
| Dedicated Allocation | Each port has a fixed maximum allocation, supported by the electrical design. |
| Fixed Group Limit | Active ports share a set total power budget. |
| Dynamic Group Limit | The group’s power budget adjusts with measured building demand, within configured limits. |
A fixed group limit must fit the capacity available while charging operates. Dynamic load management can adjust charging as other building loads change. Both approaches must respect relevant circuit, distribution and site limits.
In the earlier example, the two vehicles leaving after two hours each need 15 kWh. Each vehicle would receive the required 15 kWh if it could sustain an average input power of 7.5 kW over those two hours. With a constant 20 kW group budget, 5 kW remains for other vehicles during that period.
The system must support the required priorities and handle minimum charging-current limits, potentially by rotating charging between vehicles. Once the early departures finish, their allocation becomes available to the remaining vehicles. This example assumes the other ten vehicles remain connected for the full nine hours and 20 kW stays available throughout. It leaves no spare time for interruptions.
Confirm these capabilities for the proposed equipment and controller; a load-balancing label alone does not establish how priorities work.
When Are Load Management or Electrical Upgrades Needed?
Choose controls, electrical upgrades or a combination by checking whether the proposed setup can meet charging needs within the site’s confirmed limits.
Check Whether Controls Can Meet the Charging Task
Load management may reduce or defer upgrades when vehicles have enough charging time and the existing installation can safely support the controlled load.
Compare the energy available during each charging window with the vehicles’ requirements. Include periods when building demand reduces the power available to chargers. A system that avoids overload but regularly leaves vehicles short of energy does not meet the operating plan.
Seek an upgrade assessment when revised schedules and power allocation still cannot meet demand, or when existing equipment needs changes to support the installation. The work might involve a local feeder or distribution board, a larger utility connection, or both.
Compare Upgrade and Operating Costs
Compare proposals over the same operating period. Include chargers, electrical work, utility upgrades, metering, controls, communications, software subscriptions and maintenance.
Review the applicable electricity tariff separately:
- Energy Charges: Check the price paid per kWh and any time-of-use periods.
- Demand or Capacity Charges: Confirm whether charges depend on measured peaks, agreed capacity or another tariff rule.
An electrical safety limit and a cost-control limit serve different purposes. Staying within the service rating does not necessarily prevent an increase in billed demand. Peak shaving and off-peak charging may help where the tariff and charging schedule support them.
Solar generation or battery storage may also reduce grid demand in some periods. Assess their available power, usable energy, timing and costs before treating them as alternatives to an upgrade.
How Do You Plan for Uncertain Demand and Future Expansion?
Plan an initial installation around confirmed needs, then define how it can expand as vehicle numbers and charging patterns change.
Build Demand Scenarios
Prepare a baseline, an expected-growth case and a higher-demand case. Use confirmed vehicle orders, tenant plans or resident interest to support the assumptions. Choose review dates that match the site’s purchasing, leasing or construction plans.
For each case, estimate vehicle numbers, energy needs and charging windows. Record which changes would require more ports, different power allocation or additional electrical capacity. Do not assume that a fixed percentage of spare capacity will suit every site.
Prepare Infrastructure and Review Points
Ask the designer to consider future cable routes, conduit, distribution space and communications before construction begins. Confirm how additional chargers would join the control system and whether existing equipment could remain in use.
Space for future equipment does not reserve electrical capacity. Keep the first installation, future port provision and eventual supply requirements clearly identified.
After commissioning, use operating records to guide the next decision:
| What the Records Show | What to Review |
| Drivers Cannot Find a Free Port, but Power Remains Available | Check parking rules, vehicle movement and additional ports. |
| Vehicles Regularly Miss Their Energy Targets | Review charging windows, allocation rules and electrical limits. |
| Confirmed Vehicle Growth Exceeds the Current Plan | Update demand estimates and confirm expansion requirements early. |
Track waiting times and energy shortfalls alongside port use. A site can avoid breaker trips while still providing too little charging.
Assign responsibility for reviewing these records and updating the plan. Begin utility discussions early when a future phase may require a larger connection.
Validate the Plan Before Installation
Check the proposed arrangement against the agreed charging needs and electrical limits. Record what you’ve verified and what still needs confirmation during installation or commissioning.
Check Busy Days and Loss of Communication
Ask the designer or system provider to show how the allocation handles concentrated arrivals, early departures, high building demand and an unavailable charging port.
Confirm what happens when internet access, local control communications or meter data are lost. Request the proposed response, any resulting charging limits and how normal operation resumes.
An OCPP connection between chargers and a management platform does not by itself confirm that the complete setup meets these requirements.
Record Assumptions and Responsibilities
Keep a concise record of the agreed plan:
- Demand Assumptions: State the vehicle numbers, energy requirements and charging windows used.
- Electrical Limits: Identify the confirmed limits, supporting assessment and outstanding utility conditions.
- Control Behaviour: Describe power allocation, priority rules and responses to communication or measurement failures.
- Unresolved Items: Name the responsible party, required evidence and agreed completion date.
Have the electrical designer, installer and utility confirm the matters within their respective roles. Ask equipment and platform suppliers to document the proposed configuration’s capabilities.
Carry these requirements into the commercial EV charger installation and commissioning plan so the installed system can be checked against the same agreed conditions.
Conclusion
An EV charging capacity plan should show how vehicles will receive the energy they need within the site’s electrical limits, and how the installation can expand.
Before ordering equipment, review your demand estimates and site assessment with the designer and installer. Agree on the initial setup, power allocation, required electrical work and any conditions still awaiting confirmation. Compare proposals against these agreed requirements. Then decide what to install now and what to prepare for as demand grows.
