7KW -Blue CEE 32A -Fingerprint&Password +WIFI + Bluetooth+APP
QIAO Q5 Type 2 Smart Home EV Charger – 7/11/22kW, CEE Plug or Hardwired, with Fingerprint or Password Access, LED Display, WiFi/Bluetooth/App Control

QIAO Q5 Type 2 Smart Home EV Charger – 7/11/22kW, CEE Plug or Hardwired, with Fingerprint or Password Access, LED Display, WiFi/Bluetooth/App Control

$216.54 – $306.42Price range: $216.54 through $306.42
people are viewing this right now
Product introduction

Start charging with your fingerprint, password, or the Tuya Smart app. Use the charger’s fingerprint reader and numeric keypad for everyday access, or manage current, charging schedules and records through the app.

  • Charging start: Fingerprint, password or app
  • Local interface: Fingerprint reader, numeric keypad and LED indicators
  • App features: Adjust current, schedule individual charging sessions, and view or export charging records by email
  • Connectivity: Wi-Fi and Bluetooth
  • Power options: 7 / 11 / 22 kW
  • Power connection: CEE plug or hardwired
  • Cable: Attached 5 m Type 2 charging cable
  • Electrical protection: Built-in Type A residual current protection with 6 mA DC detection
  • Durability: IP66 protection for indoor and outdoor use, plus IK10 impact resistance
  • Operating temperature: −30°C to +62°C
  • Enclosure: Flame-retardant polycarbonate housing that resists weathering and acid rain

Need a different cable length? Contact us before ordering.

7KW + CEE 32A Blue Plug
7KW + Hardwired
11KW + CEE 16A Red Plug
11KW + Hardwired
22KW + CEE 32A Red Plug
22KW + Hardwired
Clear
Image Checkout
Guaranteed Checkout
  • ✓ Factory Direct Shipping ✓ Dispatch within 2–3 business days ✓ Tracking number provided ✓ Europe delivery: 3–15 business days* *Estimated transit time after dispatch. Delivery time varies by shipping method.
  • See Shipping & Return for delivery and return details.
SKU: D2300-3-2-4-7 Categories: type 2 chargers, Type 2 Wallbox Tag: Q5
QIAO Q5 Type 2 Smart Home EV Charger - 7/11/22kW, CEE Plug or Hardwired, with Fingerprint or Password Access, LED Display, WiFi/Bluetooth/App Control
$216.54 – $306.42Price range: $216.54 through $306.42
select option

Deep Dive

Packing List

QIAO)) Series Product Comparison

Q5

Q5

Configure
Learn More >

All EVs

EVs Compatibility

7kw/ 11kw/ 22kw

0utput Power

Single-phase:120-240V
Three-phase:380-400V

Voltage

16-32A

Current

Plug & Charge/ Fingerprint/ Password/
RFID Card/ APP/ Bluetooth

Startup Method

YES

LED

NO

LCD

Network

Bluetooth/ Wi-Fi

NO

DLB

TypeA/ TypeA+6/ CCID20

Leakage Protection

14 Protections

Electrical Protection

F1

Weather Resistance

lP66

Waterproof

lK10

Fall Protection

-40°C~80°C

Storage Temperature

-30'C~50'C

Operating Temperature

5%~95%

Operating Humidity

<2000M

Altitude

Wall Mount / Pole Mount

Installation Type

≥10 years

Design Life

24-months

24 Months

Warranty Period

23*16*7.5cm

Product size

5M/7.62M/ customized

Cable Length

98%

Charging Efficiency

Q6

Q6

Configure
Learn More >

All EVs

EVs Compatibility

7kw/ 11kw/ 22kw

0utput Power

Single-phase:120-240V
Three-phase:380-400V

Voltage

16-48A

Current

Plug & Charge/ Fingerprint/ Password/
RFID Card/ APP/ Bluetooth

Startup Method

YES

LED

4.3/7inch

LCD

Network

4G/ Ethernet/ Wifi/ Bluetooth

YES

DLB

TypeA/ TypeA+6/ CCID20

Leakage Protection

14 Protections

Electrical Protection

F1

Weather Resistance

lP66

Waterproof

lK10

Fall Protection

-40°C~80°C

Storage Temperature

-30'C~50'C

Operating Temperature

5%~95%

Operating Humidity

<2000M

Altitude

Wall Mount / Pole Mount

Installation Type

≥10 years

Design Life

24-months

24 Months

Warranty Period

30*18*12cm

Product size

5M/7.62M/ customized

Cable Length

98%

Charging Efficiency

Q7

Q7

Configure
Learn More >

All EVs

EVs Compatibility

7kw/ 11kw/ 22kw

0utput Power

Single-phase:120-240V
Three-phase:380-400V

Voltage

16-32A

Current

Plug & Charge/ Fingerprint/ Password/
RFID Card/ APP/ Bluetooth

Startup Method

NO

LED

3.5 inch

LCD

Network

4G/ Ethernet/ Bluetooth

NO

DLB

TypeA/ TypeA+6/ CCID20

Leakage Protection

14 Protections

Electrical Protection

F1

Weather Resistance

lP66

Waterproof

lK10

Fall Protection

-40°C~80°C

Storage Temperature

-30'C~50'C

Operating Temperature

5%~95%

Operating Humidity

<2000M

Altitude

Wall Mount / Pole Mount

Installation Type

≥10 years

Design Life

24-months

24 Months

Warranty Period

30*18*12cm

Product size

5M/7.62M/ customized

Cable Length

98%

Charging Efficiency

Q8

Q8

Configure
Learn More >

All EVs

EVs Compatibility

7kw/ 11kw/ 22kw

0utput Power

Single-phase:120-240V
Three-phase:380-400V

Voltage

16-48A

Current

Plug &Charge/ RFID Card/APP/ Bluetooth

Startup Method

YES

LED

4.3 inch

LCD

Network

4G/ Ethernet/ Wifi/ Bluetooth

NO

DLB

TypeA/ TypeA+6/ CCID20

Leakage Protection

14 Protections

Electrical Protection

F1

Weather Resistance

lP66

Waterproof

lK10

Fall Protection

-40°C~80°C

Storage Temperature

-30'C~50'C

Operating Temperature

5%~95%

Operating Humidity

<2000M

Altitude

Wall Mount / Pole Mount

Installation Type

≥10 years

Design Life

24-months

24 Months

Warranty Period

30*18*12cm

Product size

5M/7.62M/ customized

Cable Length

98%

Charging Efficiency

Weight N/A
Please choose your power and plug type

7KW + CEE 32A Blue Plug, 7KW + Hardwired, 11KW + CEE 16A Red Plug, 11KW + Hardwired, 22KW + CEE 32A Red Plug, 22KW + Hardwired
Previous
7KW -Blue CEE 32A -E804-RFID Card + WIFI + Bluetooth + APP + 4.3 inch_

QIAO Q8 Type 2 Smart Home EV Charger – 7/11/22kW, CEE Plug or Hardwired, RFID, WiFi/Bluetooth/App Control with 4.3-Inch Display
Next

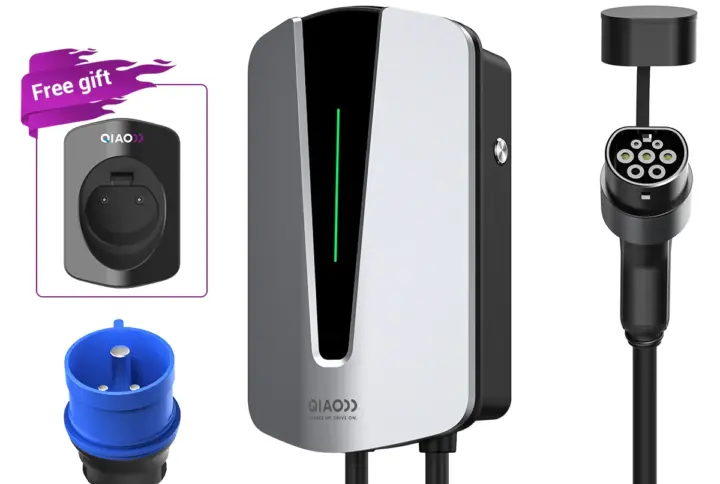

7KW -Blue CEE 32A -E801-Plug & Charge
