Why Many AC EV Chargers Have Efficiency Below 90

When evaluating EV charging performance, many assume that AC chargers are highly efficient by default.

However, in real-world conditions:

Many AC EV charging systems operate at below 90% efficiency

This gap between theoretical and actual performance can impact:

  • Energy costs
  • Charging speed
  • System ROI

Understanding why this happens is essential for B2B buyers, fleet operators, and commercial deployments.

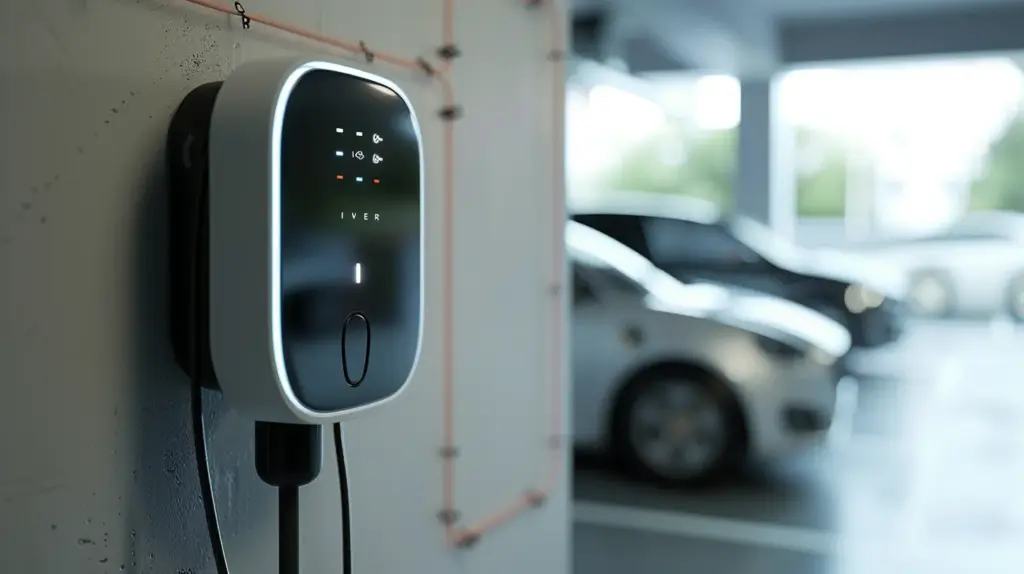

AC EV charging efficiency

What Does “Charging Efficiency” Mean?

Charging efficiency refers to:

The percentage of electrical energy from the grid that is actually stored in the vehicle battery.

Simplified Concept

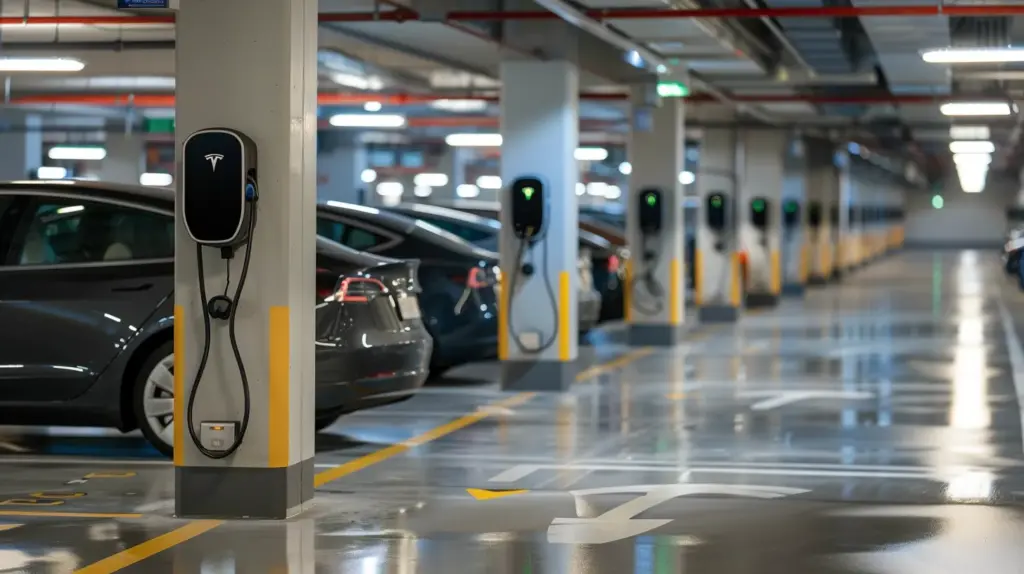

AC EV charging efficiency

Where Energy Loss Happens

In AC charging, energy loss occurs across multiple stages:

  1. Power transmission
  2. EVSE (charger) electronics
  3. Vehicle onboard charger (OBC)
  4. Battery charging process

Key insight:

The AC charger itself is only part of the system—vehicle-side losses are significant.

6 Main Reasons Why Efficiency Drops Below 90%

1. Vehicle Onboard Charger (OBC) Losses

The biggest factor is inside the vehicle.

  • AC power must be converted to DC
  • Conversion efficiency varies (typically 85–95%)

Lower-quality or smaller OBC systems = higher losses

2. Low Power Operation (Partial Load)

Efficiency decreases when:

  • Charging at low power
  • Battery is nearly full

Systems are most efficient at optimal load ranges

3. Cable and Connection Losses

Energy loss occurs due to:

  • Cable resistance
  • Connector quality
  • Cable length

Longer or lower-quality cables = more loss

4. Temperature Effects

High or low temperatures can:

  • Increase resistance
  • Reduce conversion efficiency

Especially relevant for:

  • Outdoor installations
  • Harsh climates

5. Power Factor & Electrical Quality

Poor power quality leads to:

  • Reactive power loss
  • Inefficient energy transfer

Suggested external links:

  • “Power factor explanation” → energy.gov
  • “Electrical efficiency in charging” → NREL

6. Standby and System Losses

Even when not actively charging:

  • Chargers consume idle power
  • Control systems remain active

Over time, this reduces overall efficiency.

AC vs DC Efficiency Comparison

FactorAC ChargingDC Fast Charging
Conversion LocationVehicle (OBC)Charger
Typical Efficiency85–92%90–95%
VariabilityHighLower
Control Over EfficiencyLimitedHigher

Insight:

AC efficiency varies more because part of the system is inside the vehicle.

Real-World Impact on ROI

Lower efficiency means:

  • More electricity consumption
  • Higher operating cost
  • Reduced profit margins

Example

ScenarioValue
Energy drawn100 kWh
Energy stored88 kWh
Loss12 kWh

That’s 12% energy loss per session.

How to Improve AC Charging Efficiency

1. Choose High-Quality Chargers

  • Better internal components
  • Lower standby losses

2. Optimize Power Levels

  • Avoid very low charging power
  • Match charger to vehicle capability

3. Use Smart Load Management

  • Balance load efficiently
  • Reduce unnecessary losses

4. Ensure Proper Installation

  • Short cable runs
  • High-quality connectors
  • Proper grounding

5. Monitor and Analyze Data

  • Track energy usage
  • Identify inefficiencies

Why Efficiency Still Favors AC in Many Cases

Despite lower efficiency:

AC charging still offers:

  • Lower installation cost
  • Higher utilization
  • Better scalability

For most B2B scenarios:

Total ROI matters more than pure efficiency

AC EV charging efficiency

Where QIAO Fits In

At QIAO, we design:

Our approach includes:

  • High-quality hardware
  • Smart energy management
  • Reliable long-term operation

Helping clients maximize practical ROI—not just theoretical efficiency

Common Misconceptions

  • “AC charging is always inefficient” ❌
  • “Efficiency only depends on the charger” ❌
  • “DC charging is always better” ❌

Reality:

Efficiency depends on the entire system, not just hardware.

FAQ (Optimized for SEO & AI)

1. Why is AC EV charging less efficient than expected?

Because energy conversion happens inside the vehicle, causing additional losses.

2. What is typical AC charging efficiency?

Usually between 85% and 92% in real-world conditions.

3. Does charger quality affect efficiency?

Yes, especially in terms of standby loss and electrical design.

4. Can efficiency be improved?

Yes, through:

  • Better equipment
  • Proper installation
  • Smart energy management

5. Is AC charging still a good choice?

Yes. Despite some losses, it offers better ROI in most commercial scenarios.
